Smart radiator thermostat

Wireless Gateway Hub

• Power Input: 100–240V AC, 50/60Hz, 0.25A max

• Power Output: 5V ⎓ 1A via AC-DC adapter

• Wireless Technology: 2.4GHz Wi-Fi

• Operating Environment: -10°C to 55°C, 10%–90% RH

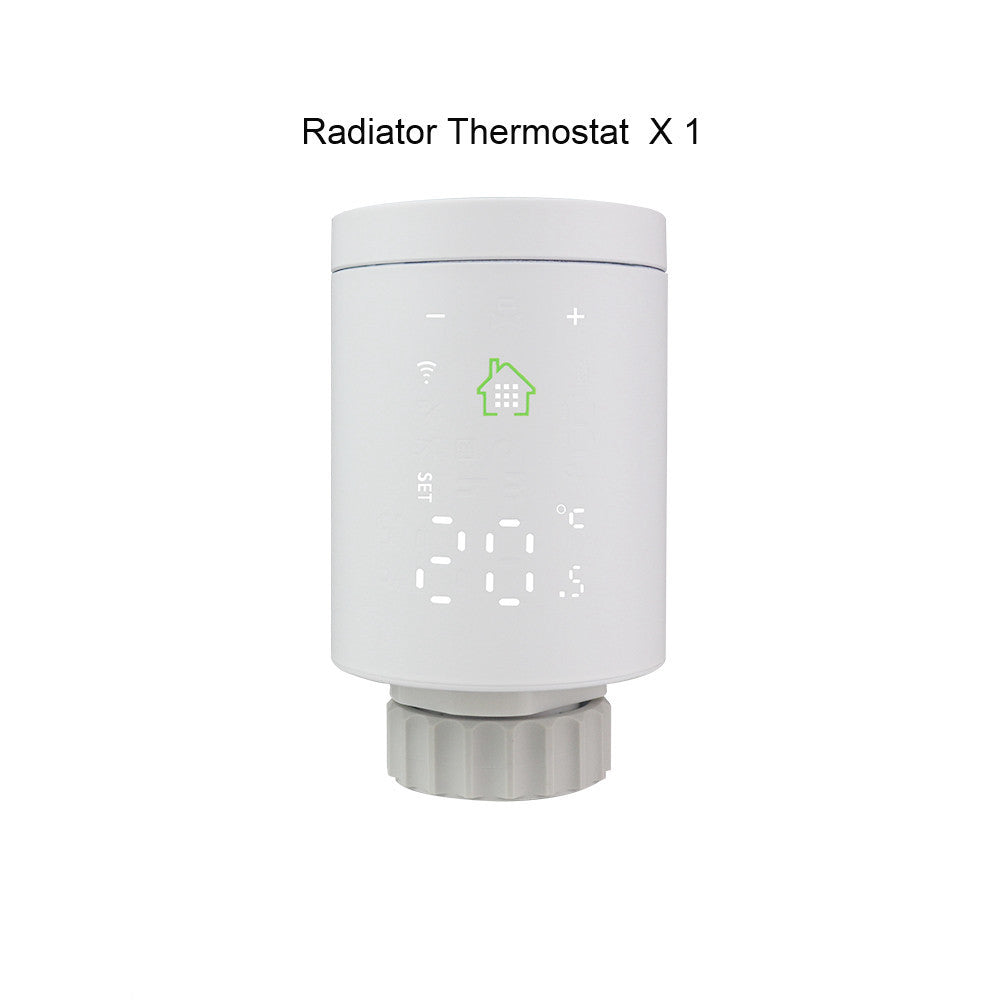

Radiator Thermostat

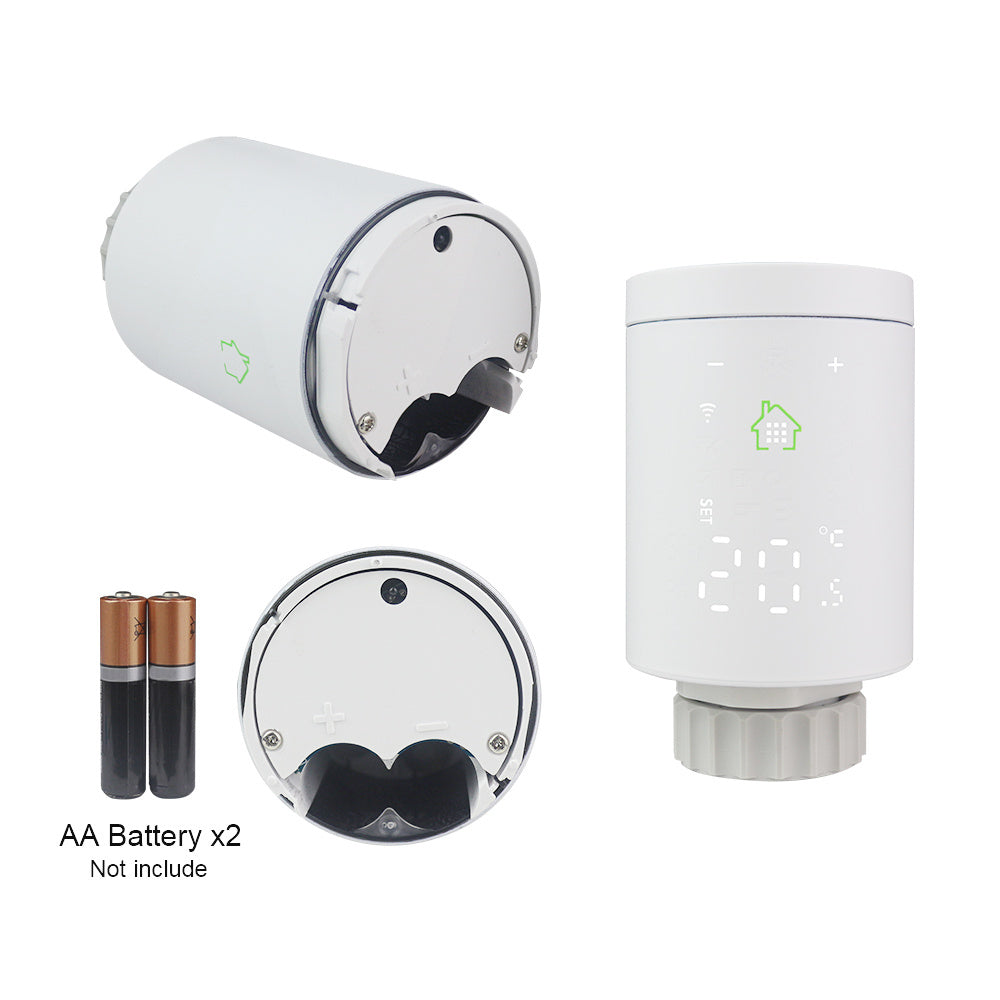

• Power: 2 × AA 1.5V batteries (not included)

• Maximum Current: 90mA

• Temperature Display Range: 1–70°C

• Display Accuracy: ±0.5°C

• Default Adjustment Range: 5–35°C

• Sensor Type: NTC (10k, 1% accuracy)

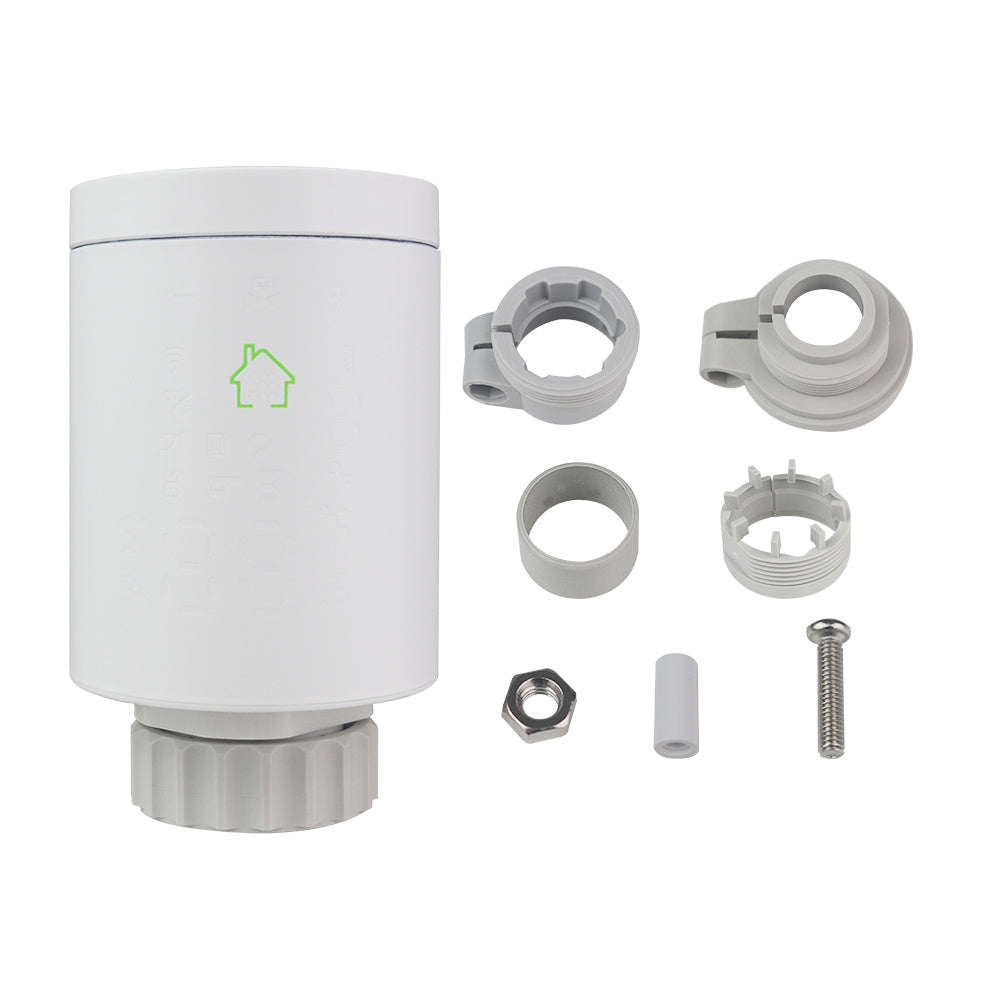

• Thread Size: M30 × 1.5

• Size: 53 × 89.5 mm

• Maximum Pin Travel: 4.5 mm

• Operating Temperature: -10°C to 60°C

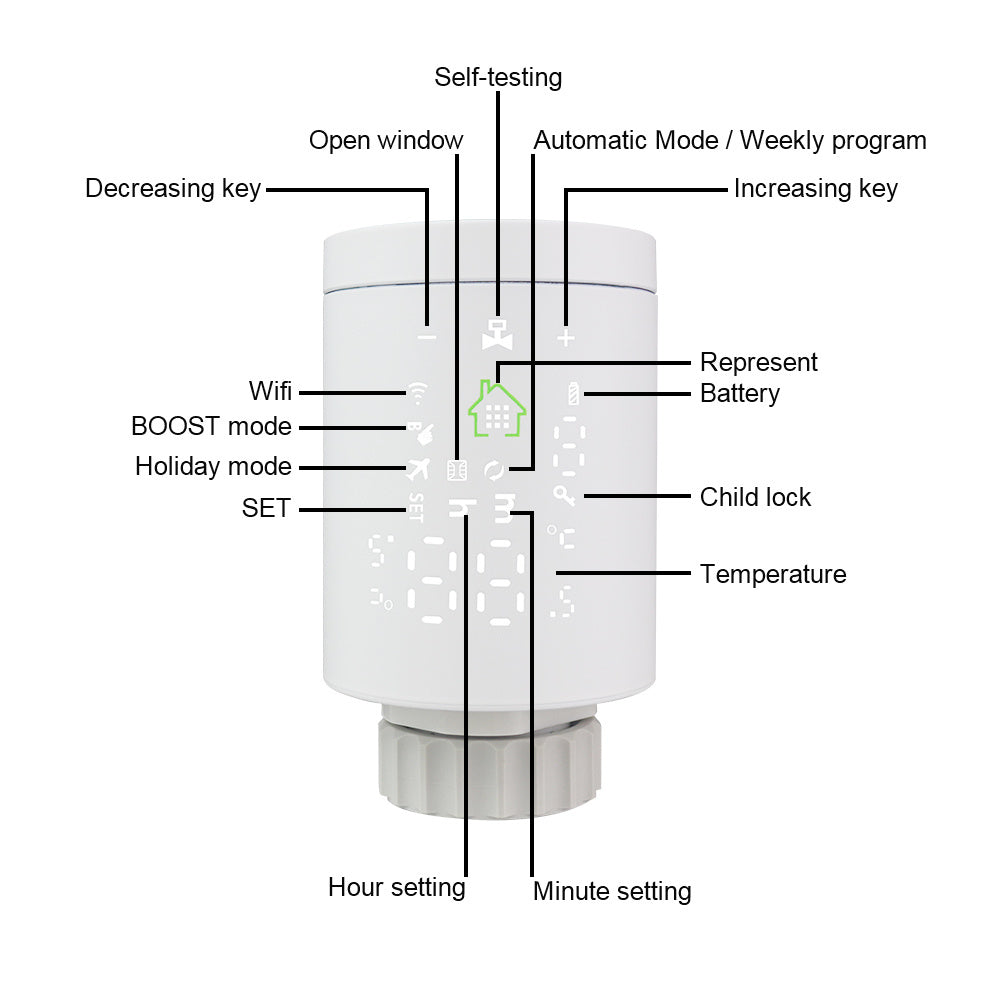

Features & Functions

• Weekly Program: Supports 5+2, 6+1, and 7-day scheduling

• Modes: Vacation, Auto, Boost, Wi-Fi

• Energy Saving: Ventilation & energy-saving functions (off by default)

• Indicators: Low battery, open window, error codes

• Child Safety: Child lock function

• Error Codes:

  • E1: Pin blocked before reaching 2mm

  • E2: Temperature sensor open or damaged
