Automotive OBD2 Scanner OBD Code Reader Car Check Engine Fault Diagnostic Tool - SAVE $37

OBD2 Car Diagnostic Scanner – V320

Brand: Unbranded
Manufacturer Part Number: N/A
Estimated Shipping Time: 2 Days
Availability: USA only (Excludes Hawaii, Alaska, Puerto Rico, Guam, Virgin Islands, American Samoa, Northern Mariana Islands, Palau, Federated States of Micronesia, Marshall Islands, AA, AE, AP, U.S. Minor Outlying Islands, and U.S. Pacific Islands).

Product Overview

The V320 OBD2 Car Diagnostic Scanner is a versatile tool designed to quickly diagnose vehicle issues, monitor performance, and ensure your car is running smoothly. Supporting nine OBD II/EOBD protocols, it is compatible with a wide range of vehicles and provides essential diagnostic features for both everyday drivers and automotive enthusiasts.

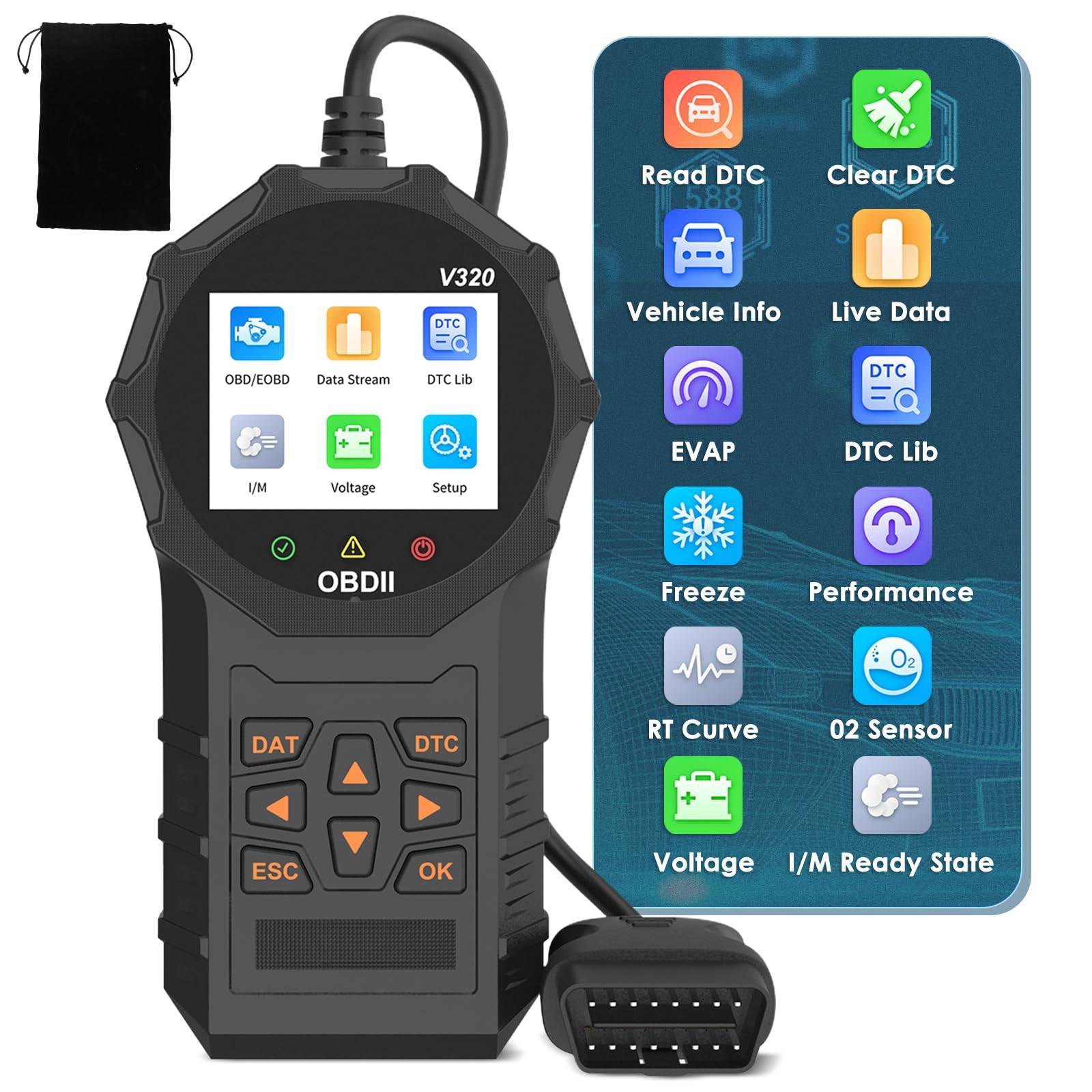

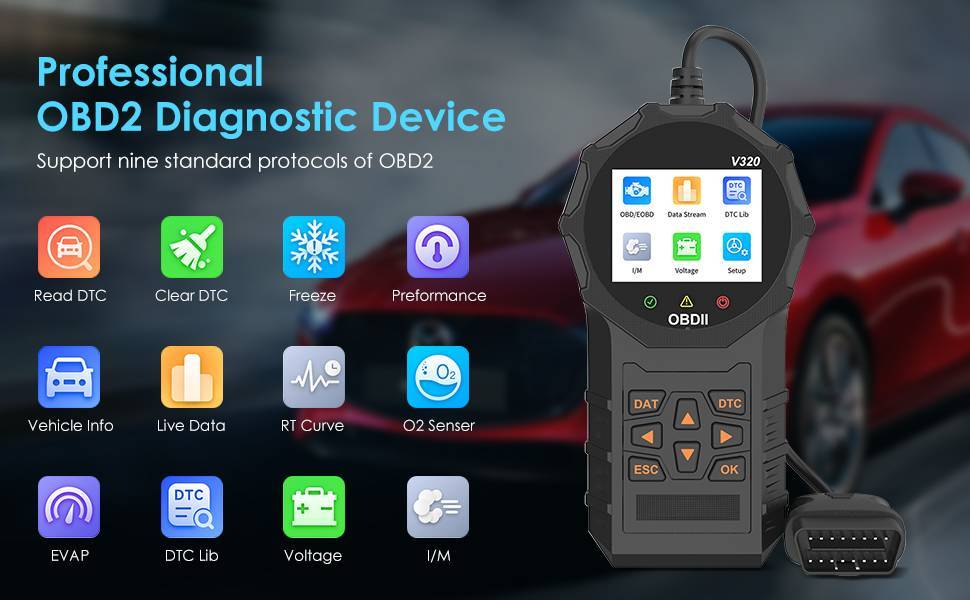

Key Features

• Wide Compatibility – Supports nine OBD II/EOBD protocols for use with most vehicles.

• Battery Voltage Test – Monitors and displays real-time car battery voltage.

• Read & Clear Fault Codes – Identify issues and clear fault codes instantly.

• Live Data Stream – View engine parameters such as RPM, temperature, and fuel consumption in real time.

• Freeze Frame Data – Saves vehicle state information at the moment a fault occurs.

• MIL Status Check – Check the malfunction indicator light (Check Engine Light) status.

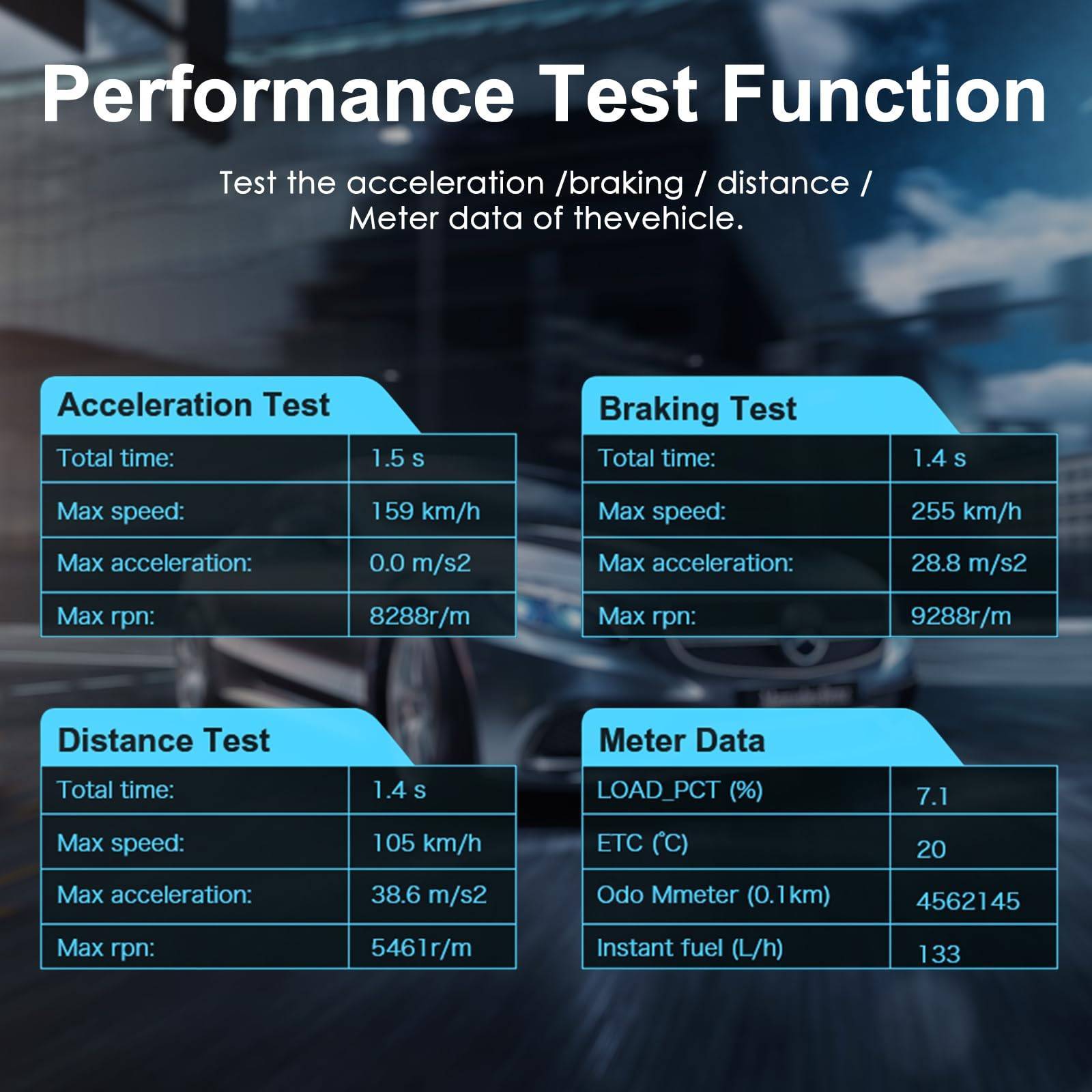

• Performance Testing – Evaluate acceleration, braking, and other performance metrics.

• Vehicle Information Access – Retrieve VIN, engine model, and other key data.

• Oxygen Sensor Test – Check oxygen sensor functionality for emission system performance.

• Fuel Evaporation System Test (Mode 8) – Ensure fuel system efficiency.

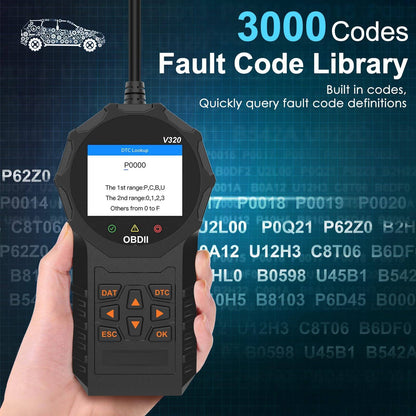

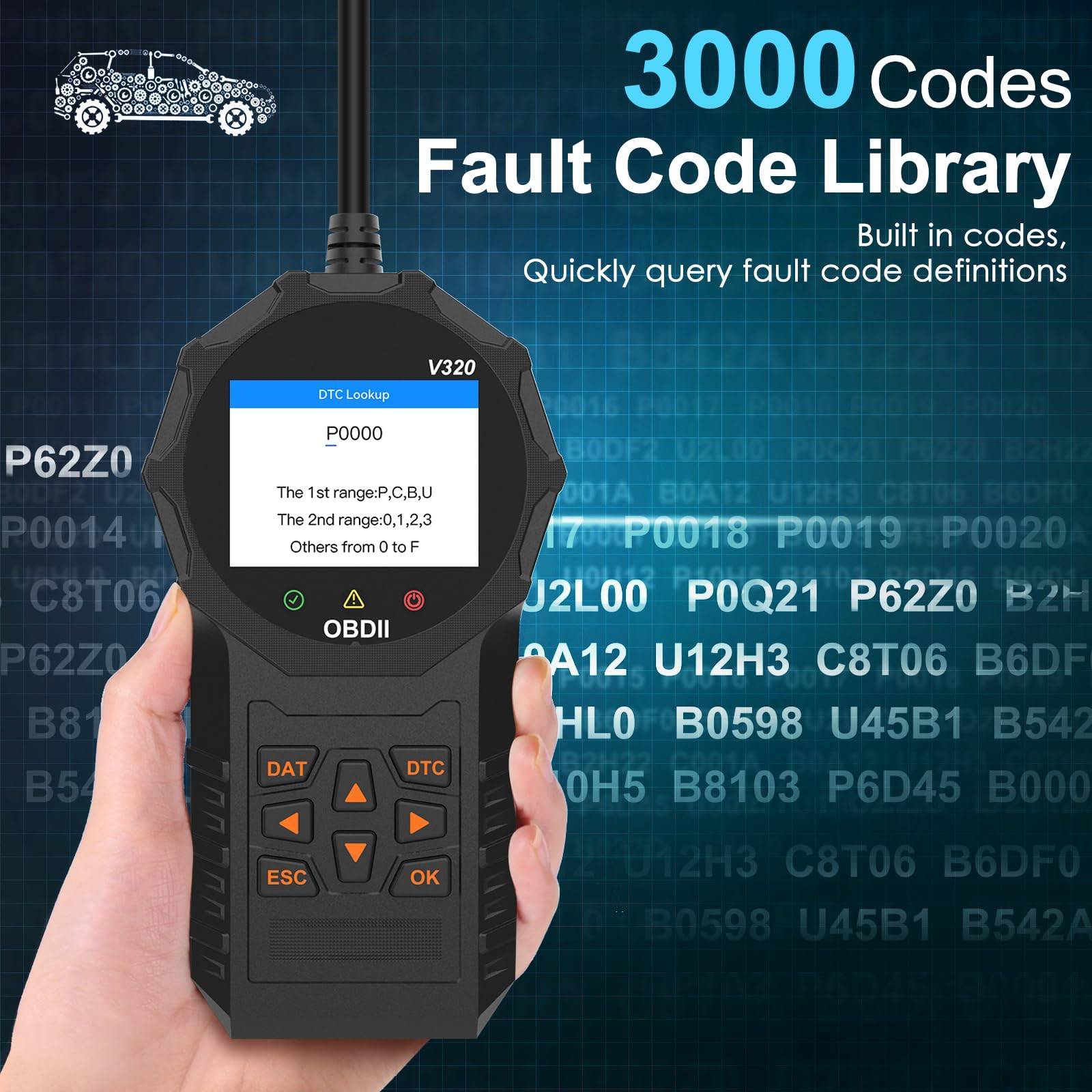

• Fault Code Lookup – Get detailed descriptions of fault codes for easier troubleshooting.

• Data Playback – Review and manage previous fault codes, data streams, and freeze frames.

• Multi-Language Support – 8 languages: English, German, French, Spanish, Italian, Russian, Dutch, and Chinese.

Supported Protocols

The V320 supports the following 9 automotive communication protocols:

• SAE J1850 PWM (41.6Kbaud)

• SAE J1850 VPW (10.4Kbaud)

• ISO9141-2

• ISO14230-4 KWP (slow init)

• ISO14230-4 KWP (fast init)

• ISO15765-4 CAN (11bit ID, 500 Kbaud)

• ISO15765-4 CAN (29bit ID, 500 Kbaud)

• ISO15765-4 CAN (11bit ID, 250 Kbaud)

• ISO15765-4 CAN (29bit ID, 250 Kbaud)

How to Use

1. Locate the OBD Port – Usually under the dashboard near the driver’s side.

2. Connect the Device – Plug the V320 into the OBD port with the provided cable.

3. Start the Car – Turn on the ignition or start the engine.

4. Run Diagnostics – Navigate the menu to choose functions such as performance test, live data, or fault code reading.

5. View Results – The scanner will display results instantly.

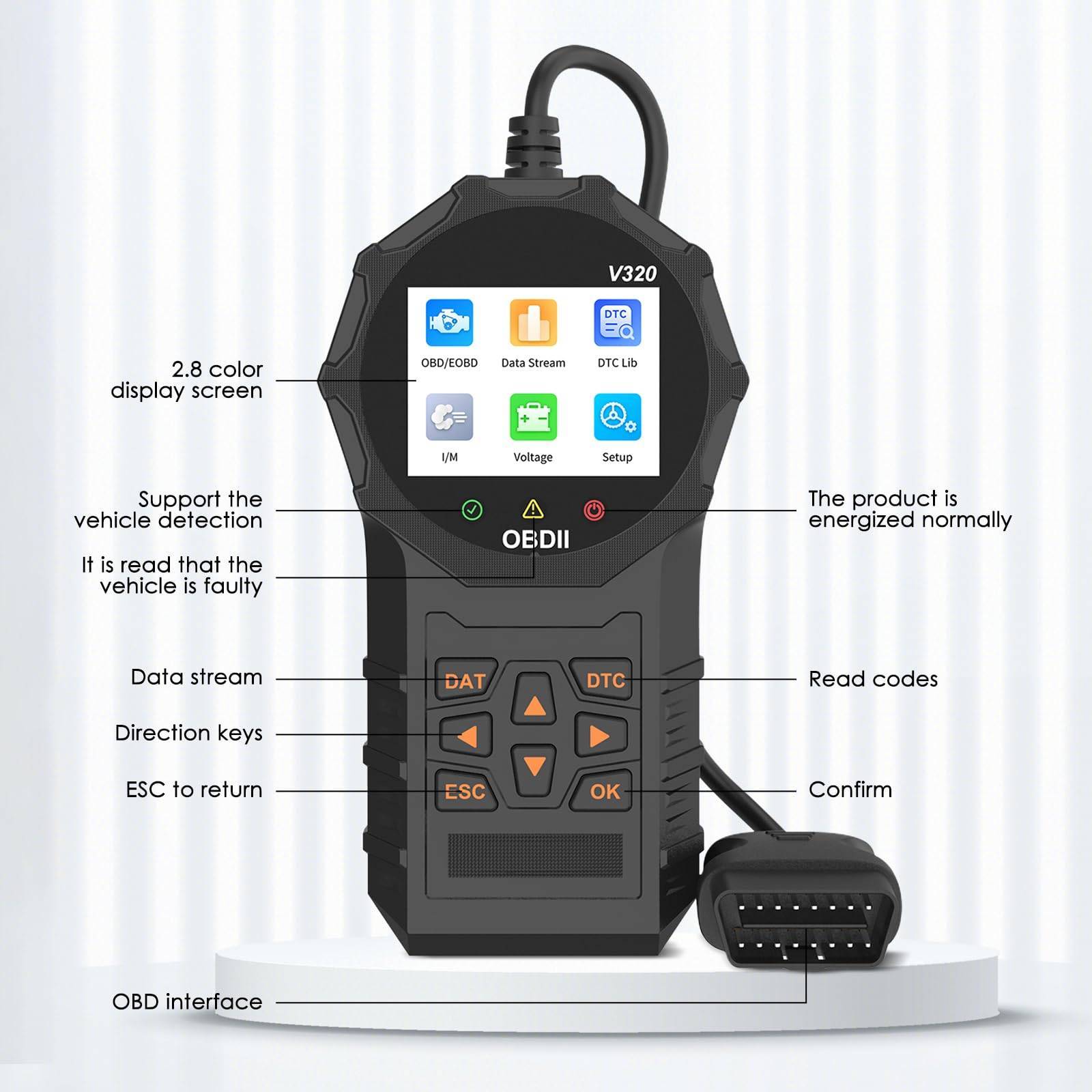

Settings & Menu Options

• Language & Units – Select preferred language and measurement units.

• Adjust Display – Change brightness, contrast, and sound settings.

• Main Menu Functions:

  • OBD/EOBD diagnostics

  • Fault code inquiry & clearing

  • I/M readiness status

  • Data stream monitoring

  • Performance tests

  • Voltage detection

Status Indicators:

• Green Light – Diagnostic supported

• Yellow Light – Fault detected

• Red Light – Device powered on

Specifications

• Purpose: Vehicle fault diagnosis

• Material: ABS plastic

• Color: Black

• Size: 195 × 100 × 30 mm

• Languages: 8 supported (EN/DE/FR/ES/IT/RU/NL/CN)

• Supported Vehicles: All OBDII-compliant models

Package Includes

• 1 × V320 Diagnostic Scanner

• 1 × English User Manual

• 1 × Storage Bag

Notes & Precautions

• Not compatible with hybrid or electric vehicles.

• Product color may vary slightly due to lighting and display settings.

• Manual measurement may result in 1–2 cm size variation.

• Warranty does not cover misuse, improper installation, or unauthorized modifications.
